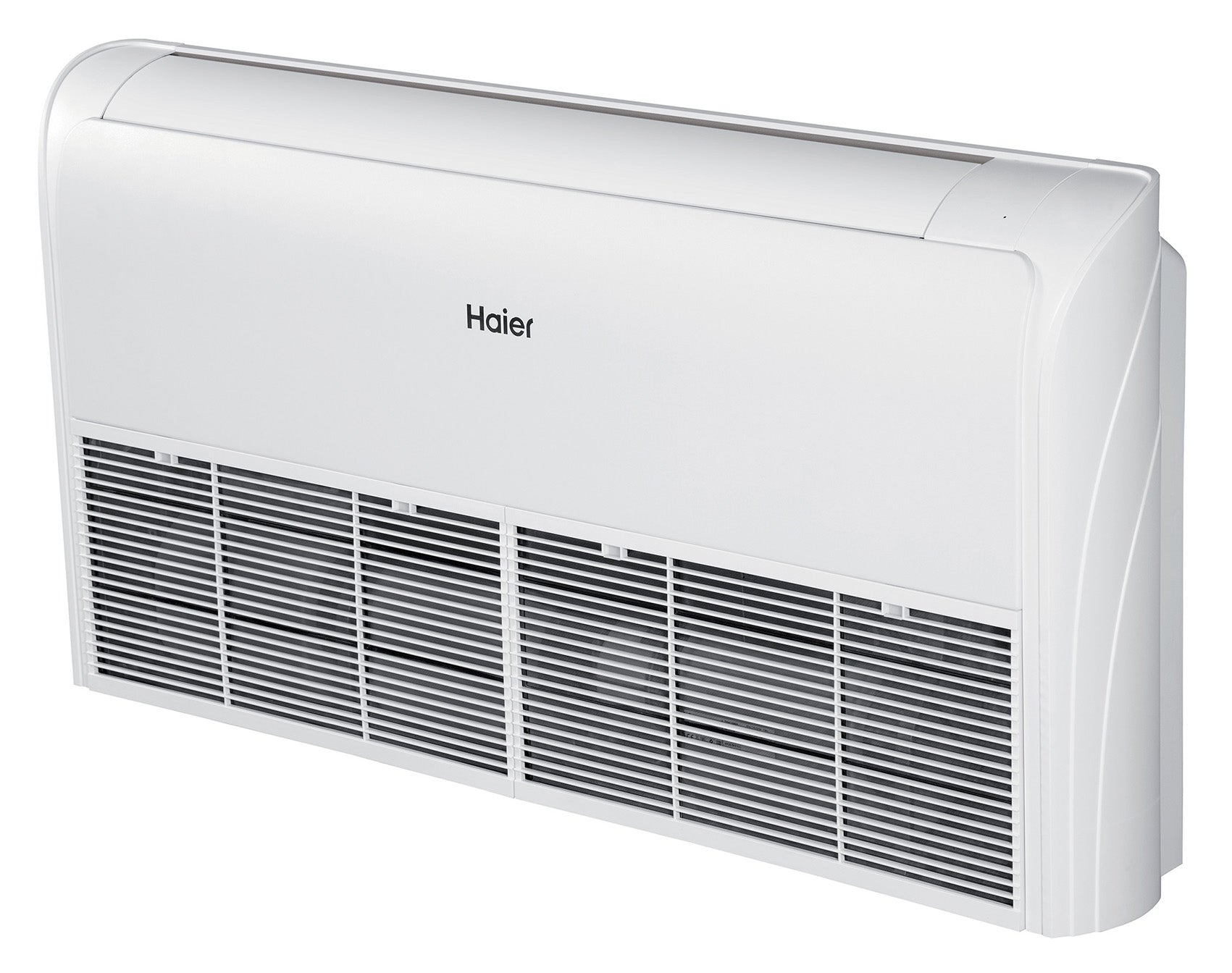

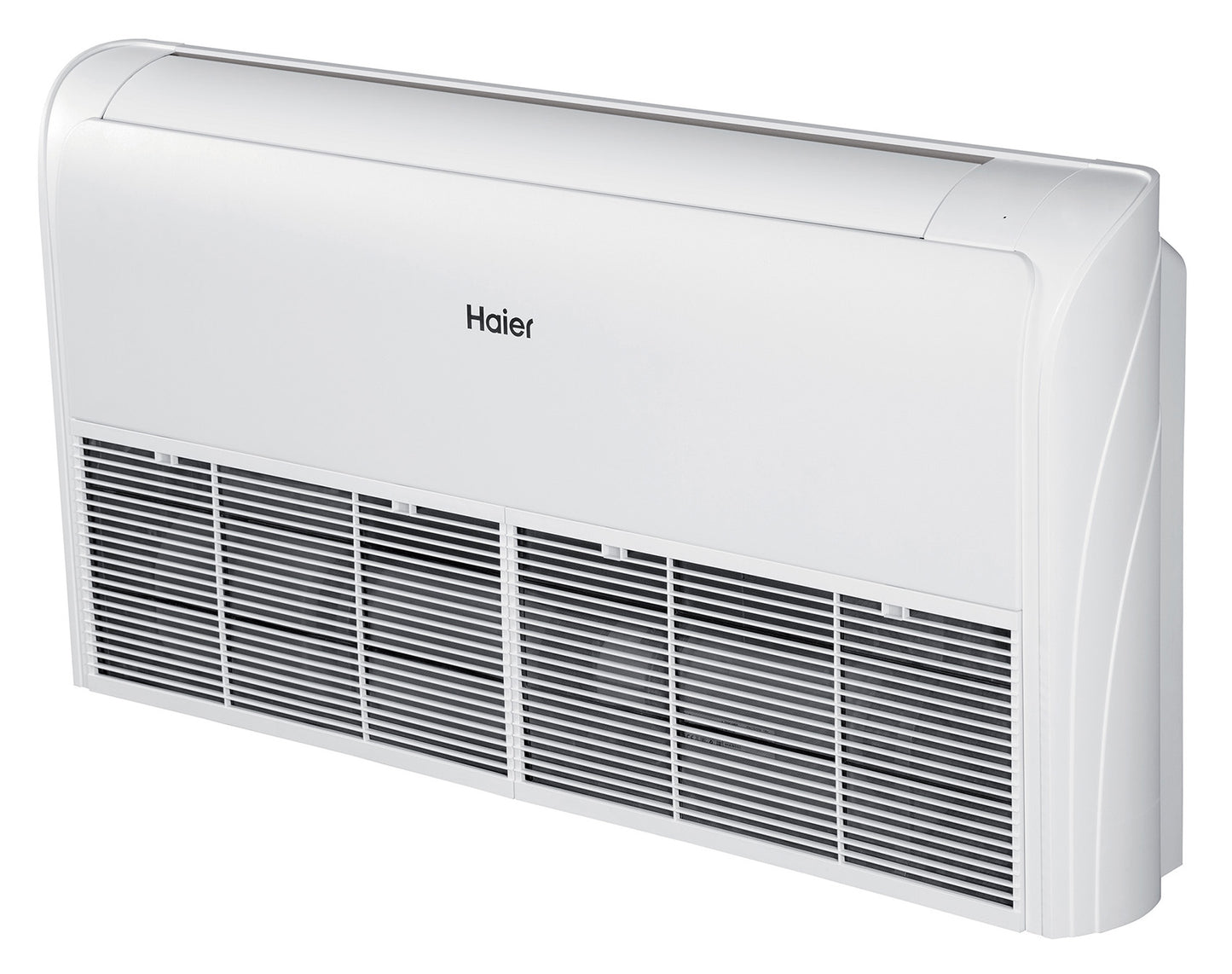

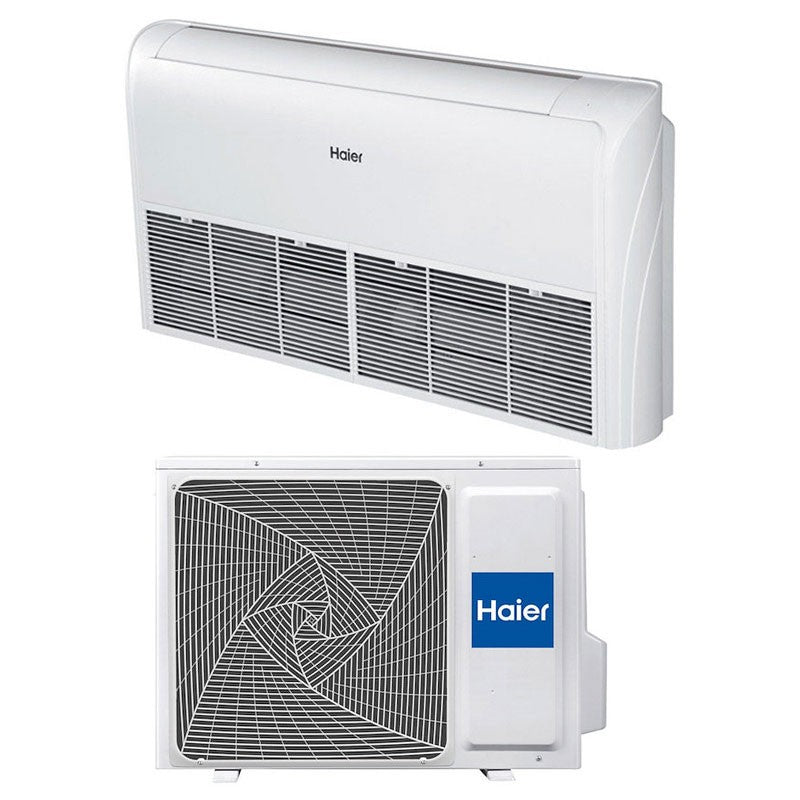

HAIER CEILING FLOOR AIRCONDITIONER - AC71S2SG1FA/1U71S1PJ2SA
HAIER CEILING FLOOR AIRCONDITIONER - AC71S2SG1FA/1U71S1PJ2SA
Regular price
QAR 4,959.00
Regular price
Sale price
QAR 4,959.00
Unit price
per
Couldn't load pickup availability
| MODEL | INDOOR UNIT | AC71S2SG1FA | AC90S2SH1FA | |
| OUTDOOR UNIT | 1U71S1PJ1SA | 1U90S1PS2SA | ||
| ELECTRICAL PARAMETERS | POWER SUPPLY | PH/V/HZ | 1/220/50 | 1/220/50 |
| NORMAL PERFORMANCE DATA | CAPACITY RATED | KW | 7.1 ( 3.2- 8) | 8.6 (5 -10) |
| BTU/H/1000 | 24 (10.9-27.3) | 29.3 (17.1- 34.1) | ||
| INPUT | W | 2300 | 2500 | |
| RUNNING CURRENT COOLING | A | 10.34 | 11.47 | |
| EER | 3.08 | 3.44 | ||
| SEER | 18.99 | 21.49 | ||
| INDOOR UNIT | ||||
| PERFORMANCE | INDOOR AIRFLOW(SH/H/M/L) | m3 /h | 1250/1128/930/840 | 1400/1300/1180/1060 |
| SOUND PRESSURE(SH/H/M/L) | dB(A) | 43/40/38/35 | 45/43/40/37 | |
| INSTALLATION | EXTERNAL DIMENSION(W/D/H) | mm | 1325/230/680 | 1325/230/680 |
| NET/GROSS WEIGHT | Kg | 33.5/41.9 | 33.5/41.9 | |
| CONTROLLER | Standard | YL-HQS01 | YL-HQS01 | |
| OUTDOOR UNIT | ||||
| PERFORMANCE | MAXIMUM AIR FLOW(H) | m3 /h | 2500 | 3500 |
| SOUND PRESSURE | dB(A) | 54 | 55 | |
| INSTALLATION | EXTERNAL DIMENSION(W/D/H) | mm | 820/300/615 | 920/372/765 |
| NET /GROSS WEIGHT | Kg | 38/42 | 54/59 | |
| COMPRESSOR TYPE | ROTARY | ROTARY | ||
| REFRIGERANT TYPE | R32 | R32 | ||
| REFRIGERANT LOAD IN FACTORY | g | 1200 | 1650 | |
| REFRIGERANT CHARGE QTY | g/m | 45 | 45 | |
| LIQUID SIDE | mm | 9.52 | 9.52 | |
| GAS SIDE | mm | 15.88 | 15.88 | |
| MAXIMUM PIPE LENGTH(B) | m | 20 | 25 | |
| MAXIMUM DROP BETWEEN IU & OU | m | 10 | 10 | |
| MIN.LENGTH | m | 3 | 3 | |
